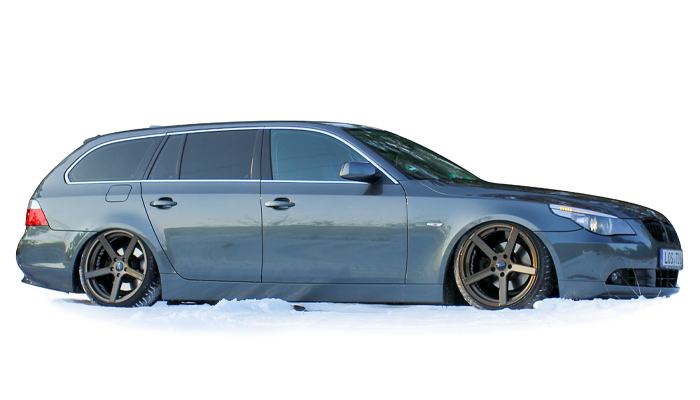

TA Technix air suspension with air management suitable for BMW 5 Series Touring E61

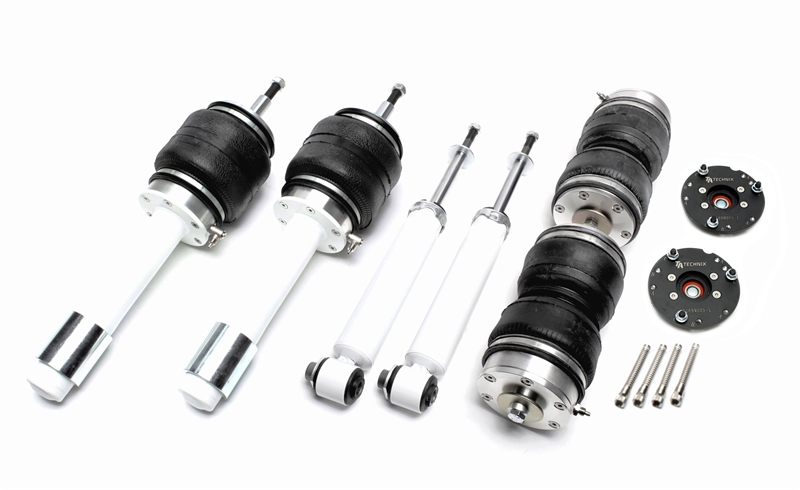

TA Technix Air Damper Set + TA Technix Air Management with Air Generation Kit
The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.
With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:
- 4 driving heights
- Adjustment of the driving height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below this level triggers a visual warning signal and is necessary for TÜV registration)
includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in black
- 11,5 litre tank in black
- Electronic set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 metre 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves
suitable for:
BMW 5 Series Type E61
only Touring
incl. 8-cylinder
without M5 + X models
year of construction 2004 - 2010
maximum front axle load: 1070kg
maximum rear axle load: 1430kg
Zulassung:
inkl. Teilegutachten (§19.3)
Wie bekomme ich das Teilegutachten für mein Luftfahrwerk?
Bestellen Sie Ihr passendes TA-Technix Luftfahrwerk. Nachdem sie es gekauft haben, senden Sie uns Ihren Fahrzeugschein, Rechnungsnummer oder Kundennummer bitte per E-Mail an luftfahrwerke@tatechnix.de. Anhand Ihrer Daten stellen wir das Gutachten auf Ihr Fahrzeug aus und Sie erhalten das fertige Gutachten per Post.
How do I get the certificate of conformity for my air suspension?
Order your matching TA-Technix air suspension. After you purchased it, please send a copy or scan of your vehicle registration certificate, order number or customer number via e-mail to luftfahrwerke@tatechnix.de. Based on your data, we will issue the certificate for your vehicle and you will receive the finished certificate via mail. For this purpose please send your home adress.
Bestellen Sie Ihr passendes TA-Technix Luftfahrwerk. Nachdem sie es gekauft haben, senden Sie uns Ihren Fahrzeugschein, Rechnungsnummer oder Kundennummer bitte per E-Mail an luftfahrwerke@tatechnix.de. Anhand Ihrer Daten stellen wir das Gutachten auf Ihr Fahrzeug aus und Sie erhalten das fertige Gutachten per Post.
How do I get the certificate of conformity for my air suspension?
Order your matching TA-Technix air suspension. After you purchased it, please send a copy or scan of your vehicle registration certificate, order number or customer number via e-mail to luftfahrwerke@tatechnix.de. Based on your data, we will issue the certificate for your vehicle and you will receive the finished certificate via mail. For this purpose please send your home adress.
Unsere Luftfahrwerke sind mit ca. 1-4 cm langen Federwegsbegrenzern ausgestattet, um problemlos eingetragen werden zu können. Für Showzwecke, jedoch NICHT IM BEREICH DER STVZO ZULÄSSIG, können die Fahrwerke ohne diese Begrenzer deutlich tiefer verstellt werden.
Hier das Fahrwerk OHNE Teilegutachten anfragen/bestellen!
Our air suspension kits are generally equipped with about 1-4 cm long spring travel limiter to be registered without any problems. For show purposes, but NOT PERMITTED ON PUBLIC ROADS (in Germany), the air suspension can be adjusted significantly lower without the limiter.
Inquire / order the suspension WITHOUT certificate here!
Hier das Fahrwerk OHNE Teilegutachten anfragen/bestellen!
Our air suspension kits are generally equipped with about 1-4 cm long spring travel limiter to be registered without any problems. For show purposes, but NOT PERMITTED ON PUBLIC ROADS (in Germany), the air suspension can be adjusted significantly lower without the limiter.
Inquire / order the suspension WITHOUT certificate here!
Hersteller:
passend für BMW
Modell:
5er Serie Touring
Typ:
E61
Baujahr:
2004 - 2010
Hinweise:
ohne M5 + Kombi + X Modelle
VA Last:
1070kg
HA Last:
1430kg
